FPV Camera Gimbal

FPV Camera Gimbal for Micro Servos

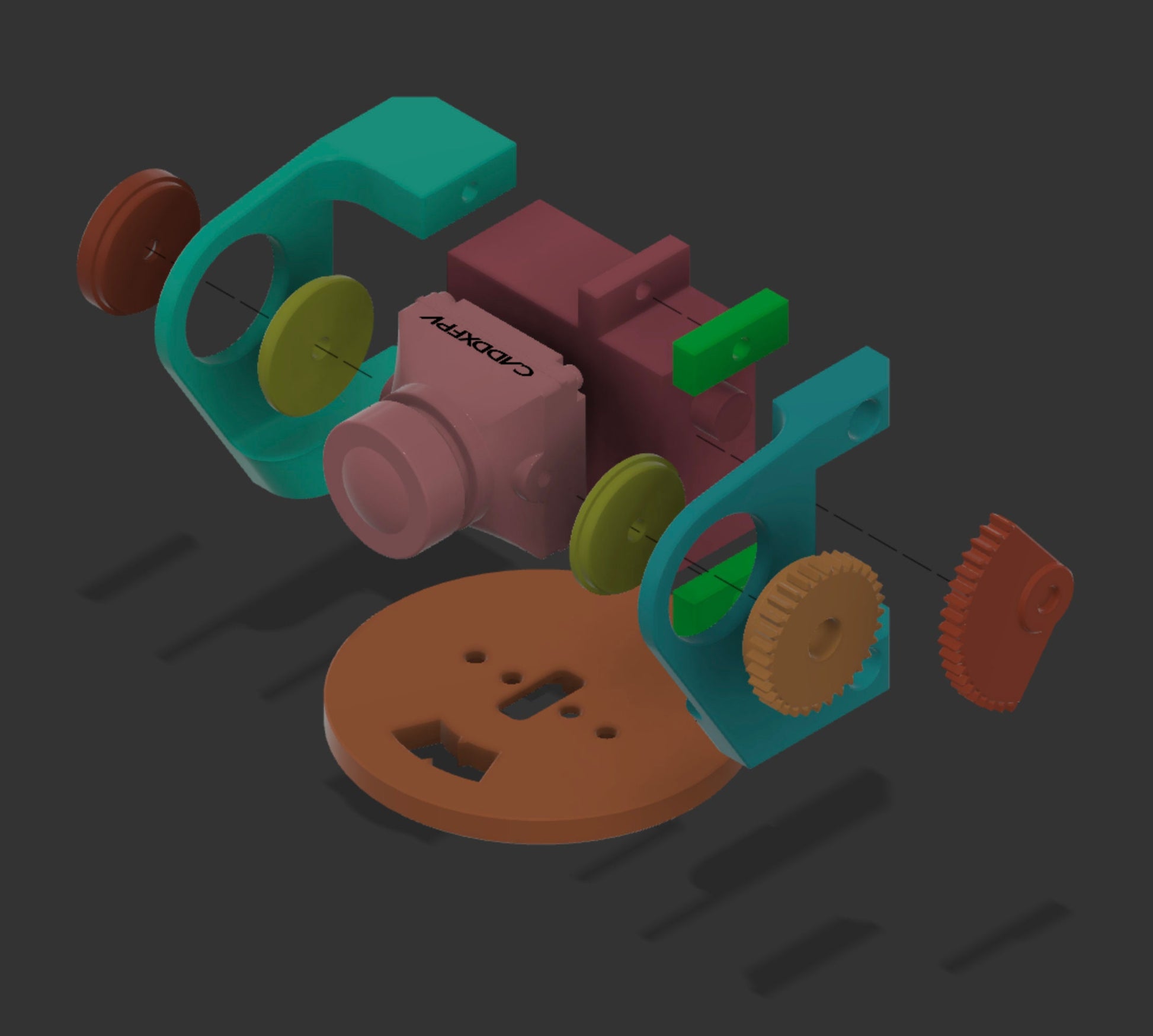

The gimbal has some amazing features:

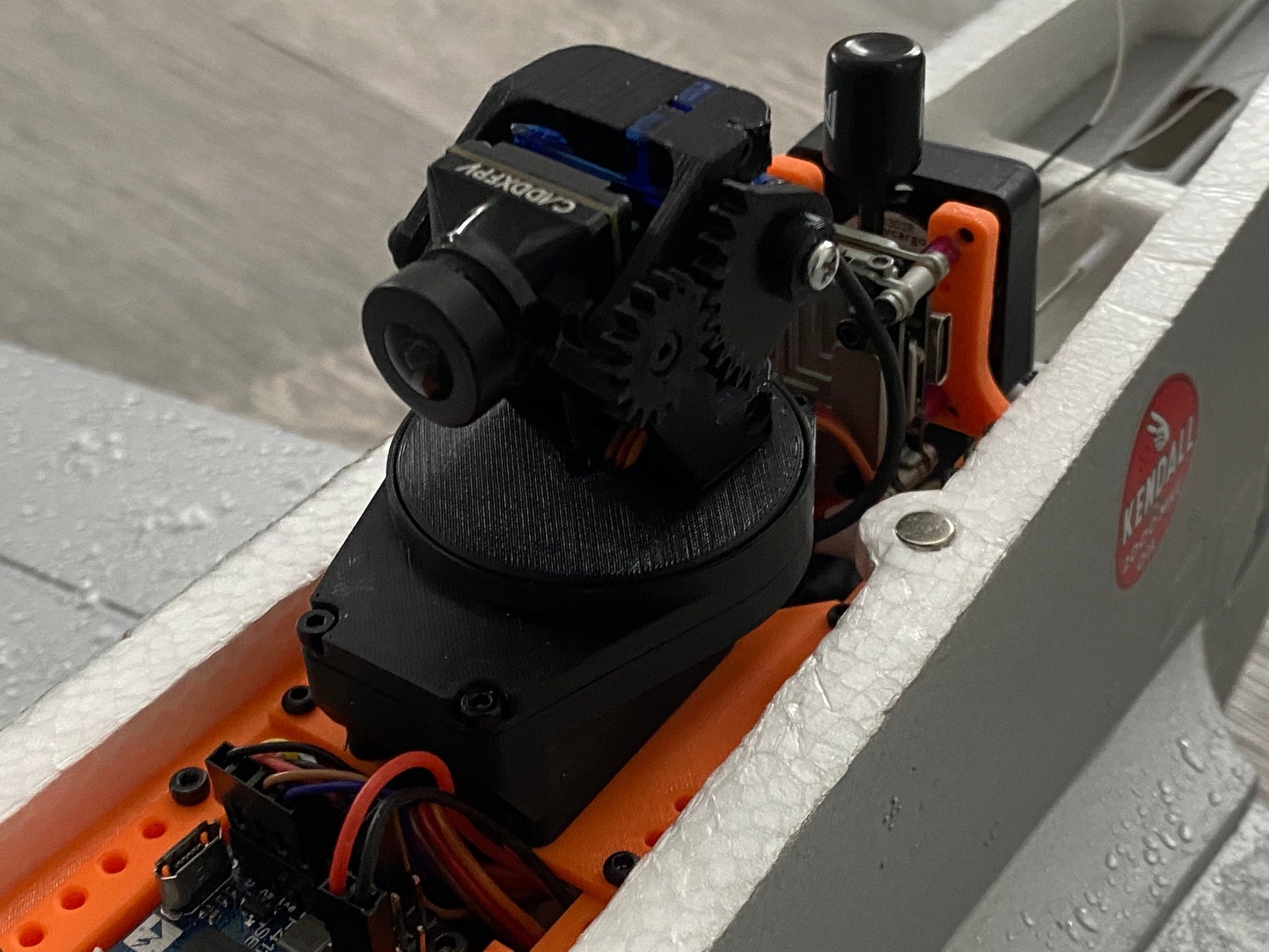

• Compact: it fits into cockpit of almost any 1000mm foam plane;
• Light: 22g of printed parts, all together with bolts, nuts, servos and camera it is under 60g;

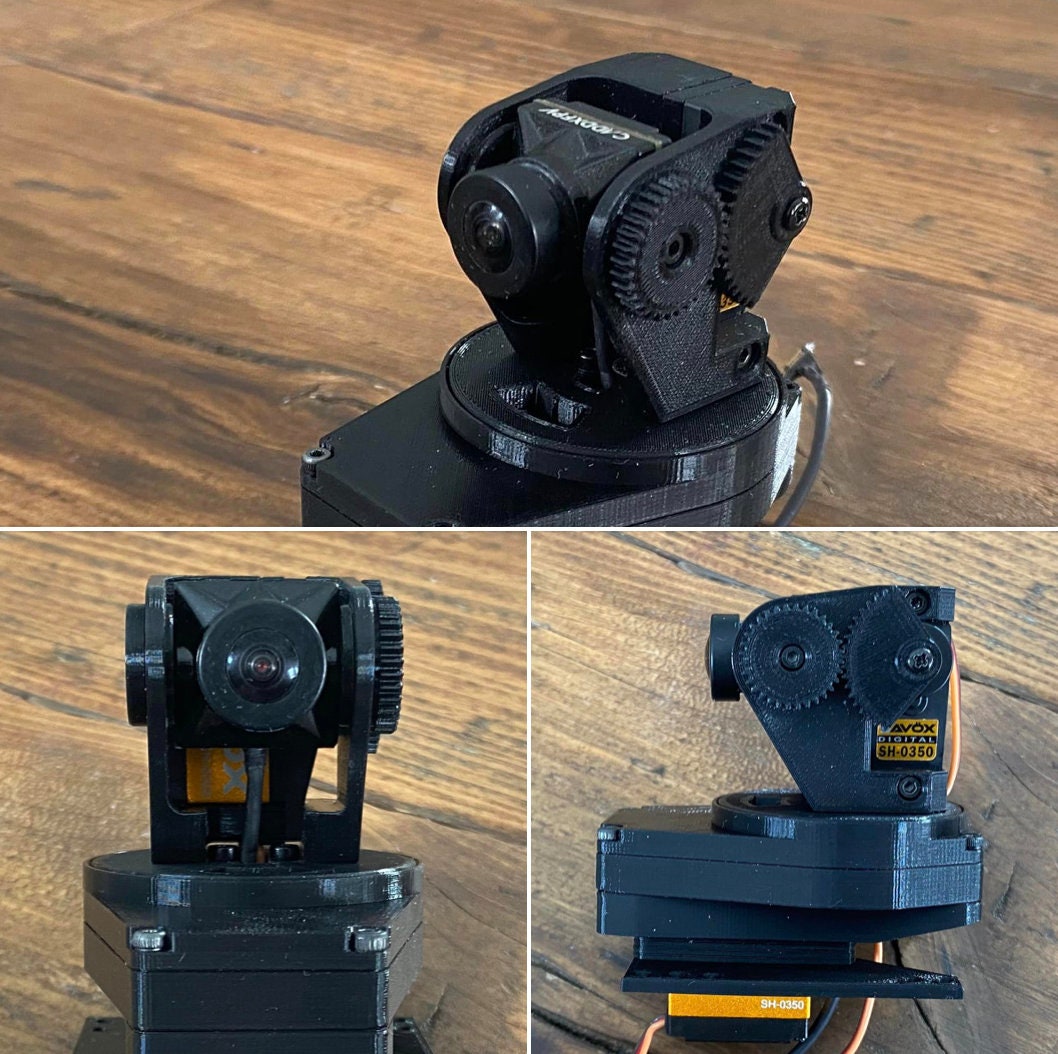

• Smooth: gears on tilt and pan optimized for smooth operation;
• Capable: 180 deg on tilt and up to 360 on pan (270 with standard servos), it uses gears with 2:1 ratio;
• Smart: optimized cable management, no strain on connectors or cables even with 360 rotation, cables are hidden in the body and not hanging around;

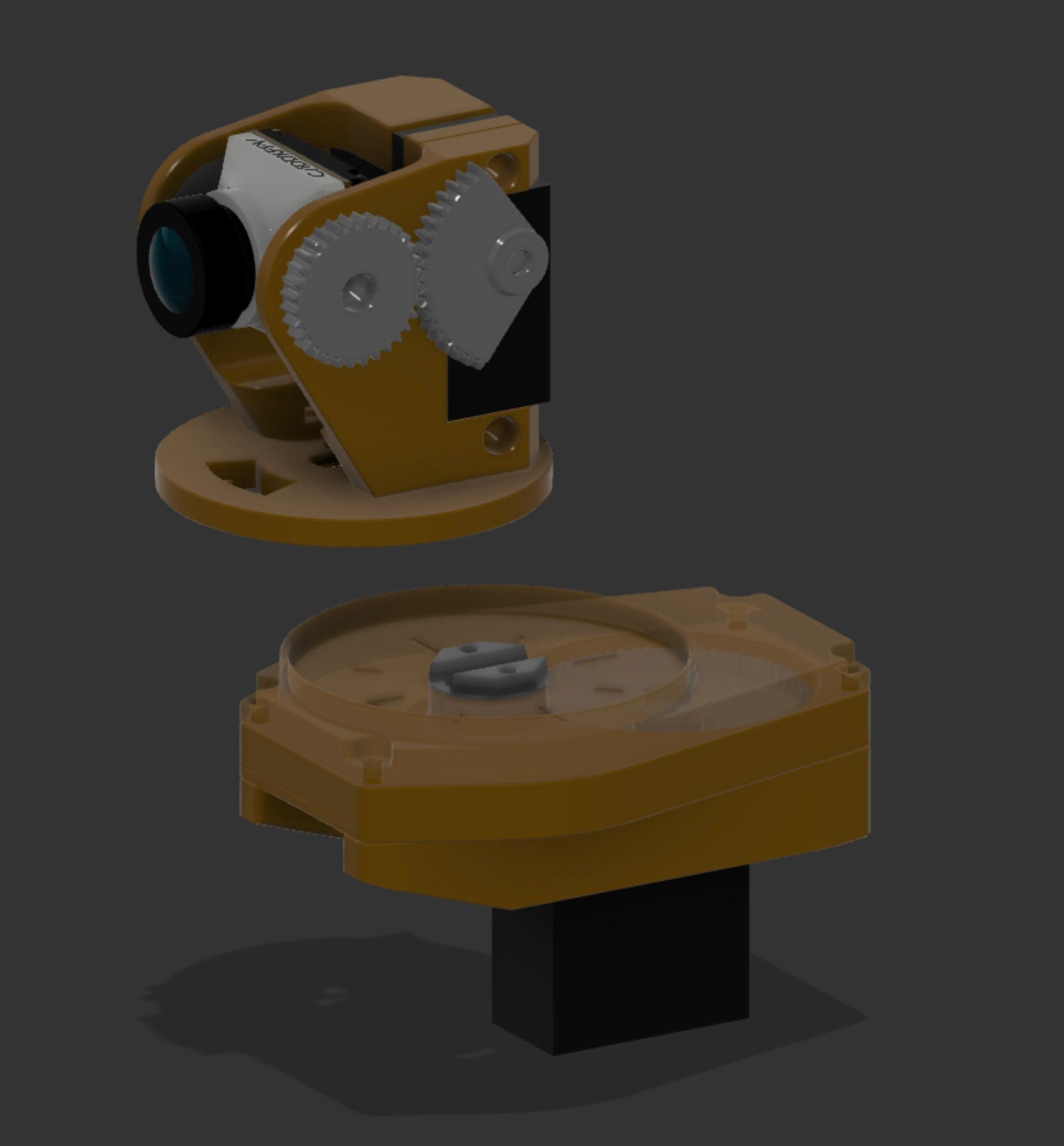

• Versatile: mount on any airframe or ground vehicle -- special mounting holes at the bottom of the pan assembly;
• Compatible: most 9g micro servos shall fit and work (optimised for Savöx SH-XXXX servos);
• Durable: survives major crashes and does not develop free-play with time.

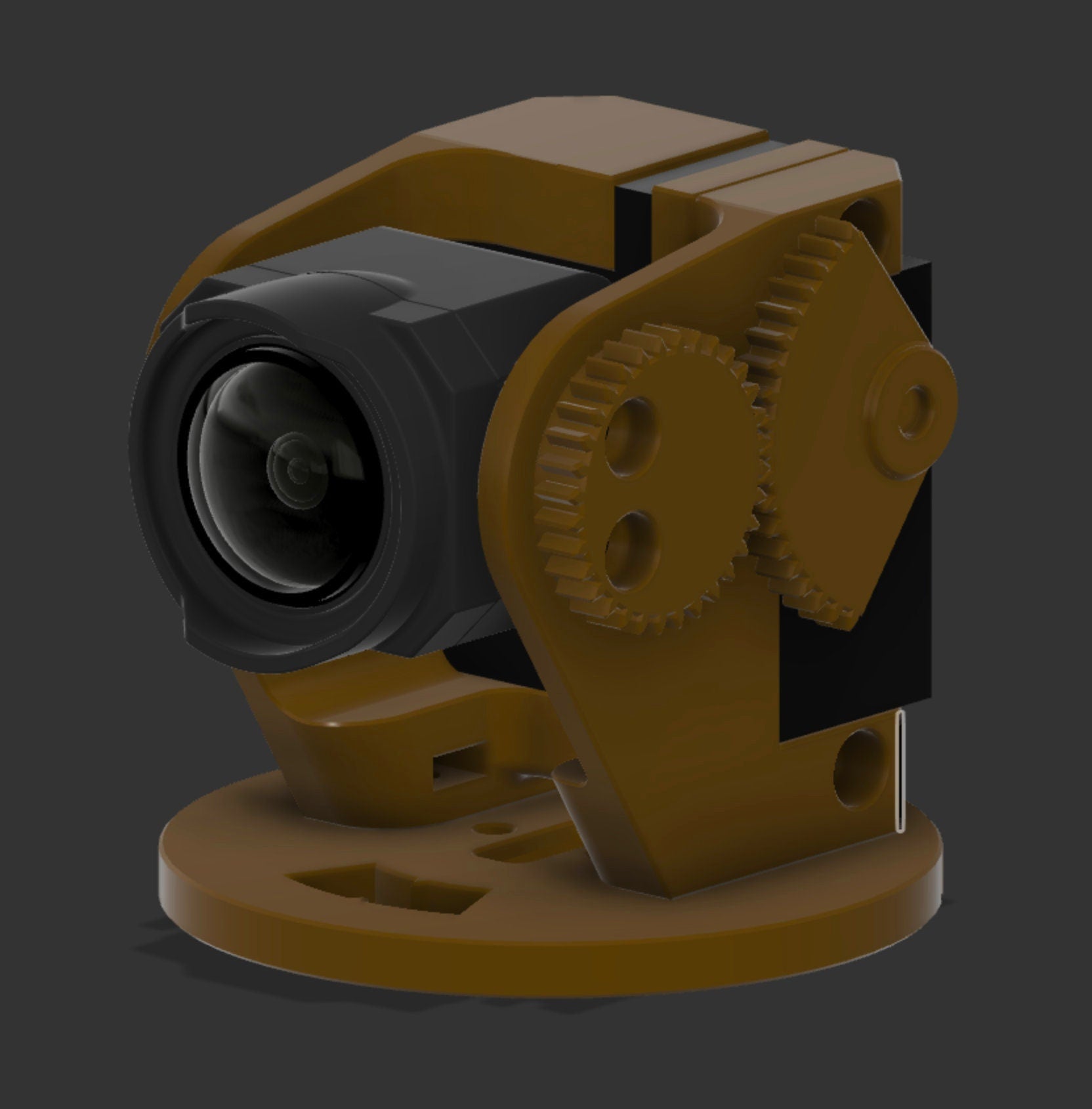

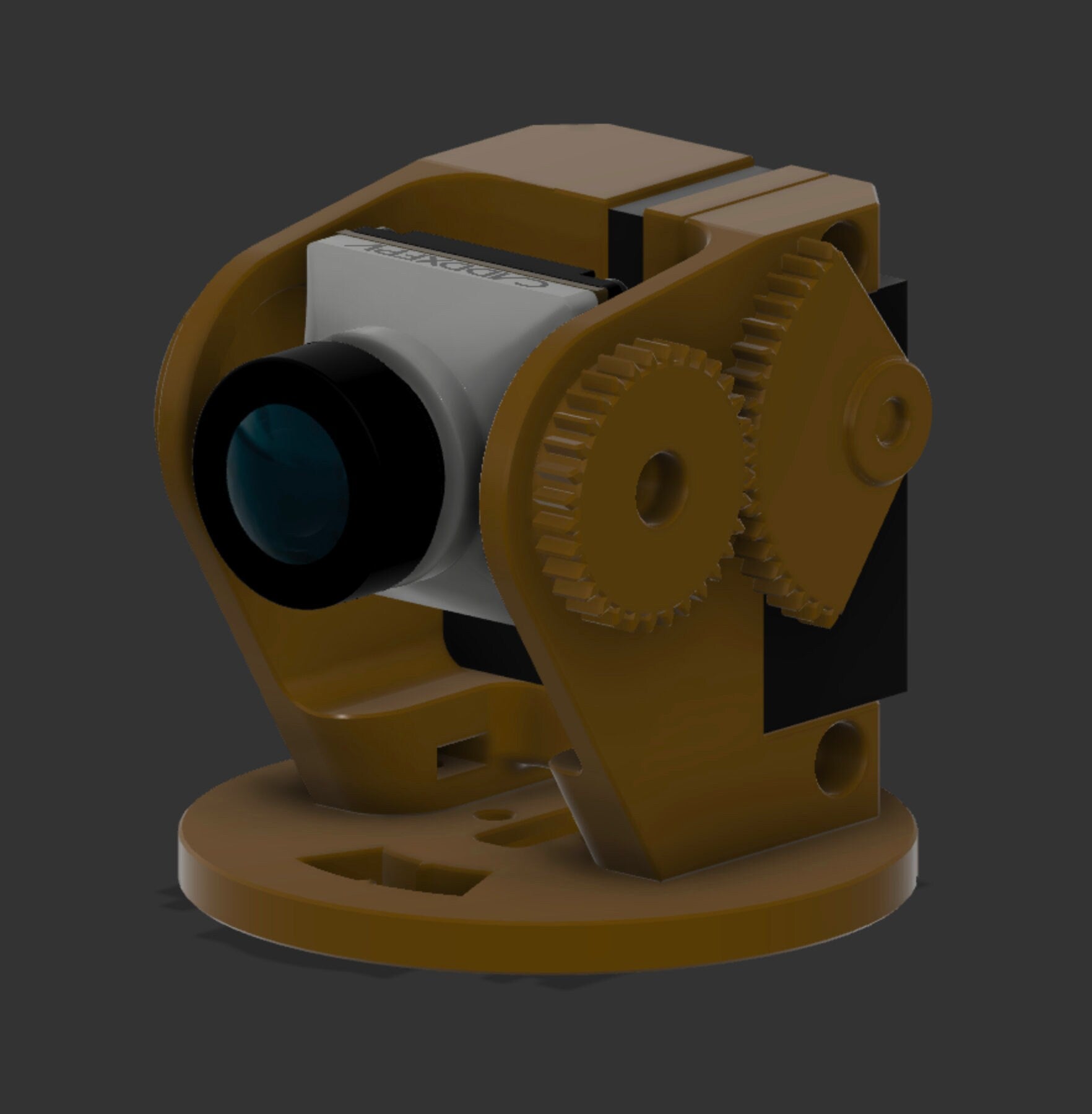

This gimbal was made with digital FPV cameras in mind: Caddx Nebula Pro-style and DJI Classic/O3.

Note: Analog cameras have bigger cable connectors, this may affect tilt axis travel range!

This is a 3D printed product.

Printed in PLA on Bambu Lab P1S  printer with 0.2 nozzle for best precision.

Shipped fully assembled and tested with Savöx SH-0350 servos installed and a camera dummy of your choice.

Dimensions

• Upper part (LxWxH): 42x42x37.6mm
• Lower part (LxWxH): 60x42x19.5mm
• Total (LxWxH): 60x42x57.1mm

Weight

• Printed parts: 22g
• Total with camera and servos: 60g

Styles

• Kit w/o servos: 3D printed parts and hardware (screws)
• Kit with servos:  3D printed parts, hardware and two Savöx SH-0350 servos
• Fully assembled: Ready to use, just add your camera

Join our users group for support and news: https://www.facebook.com/groups/242161055041994/

Have a 3D printer and want print the gimbal yourself?

Download STL files from Cults3D.
