Low Profile Mod

Low Profile Mod for FPV Camera Gimbal

THIS IS NOT A COMPLETE GIMBAL, ONLY A MOD. NO CAMERA PART INCLUDED!

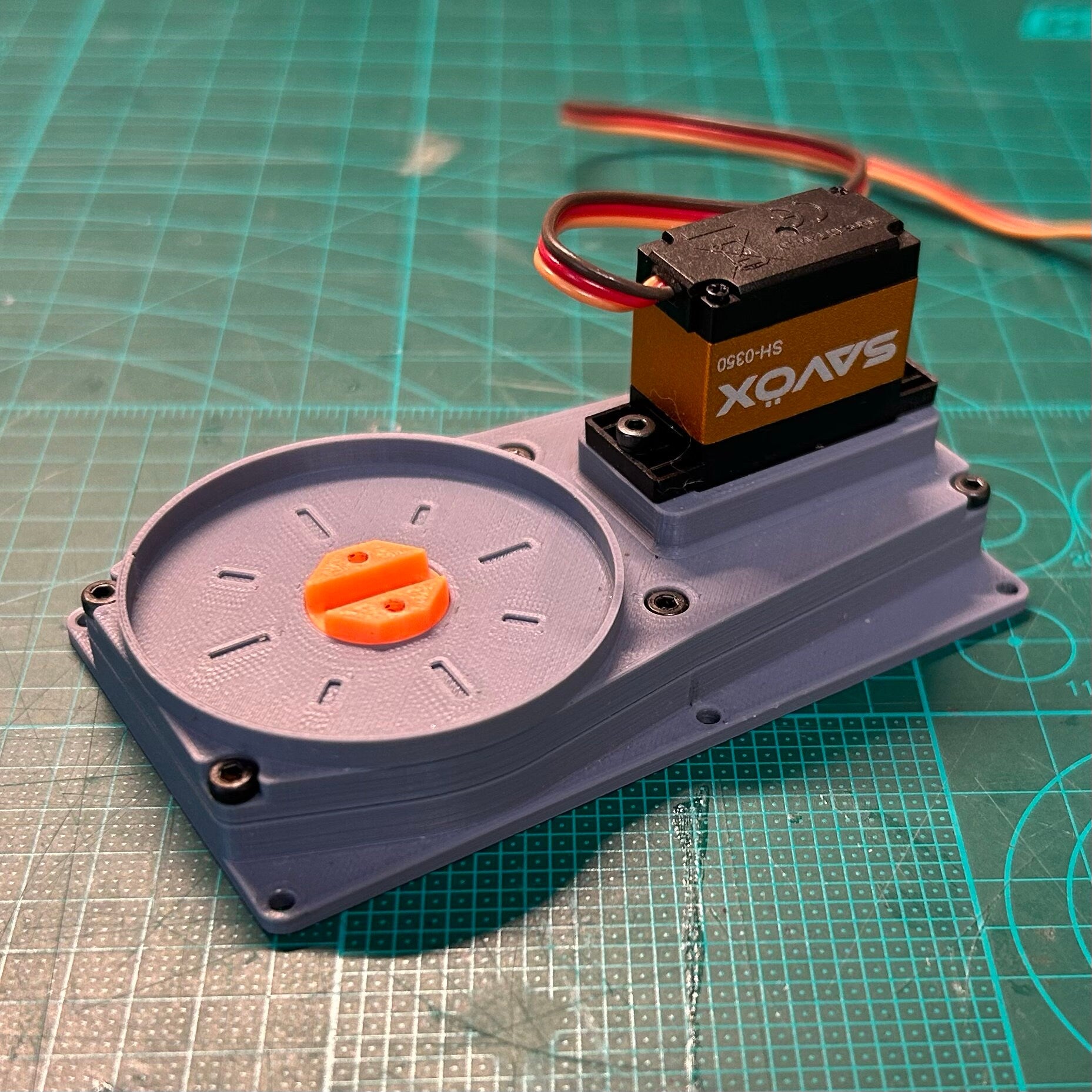

This is a low profile variant of the pan assembly for FPV Camera Gimbal.

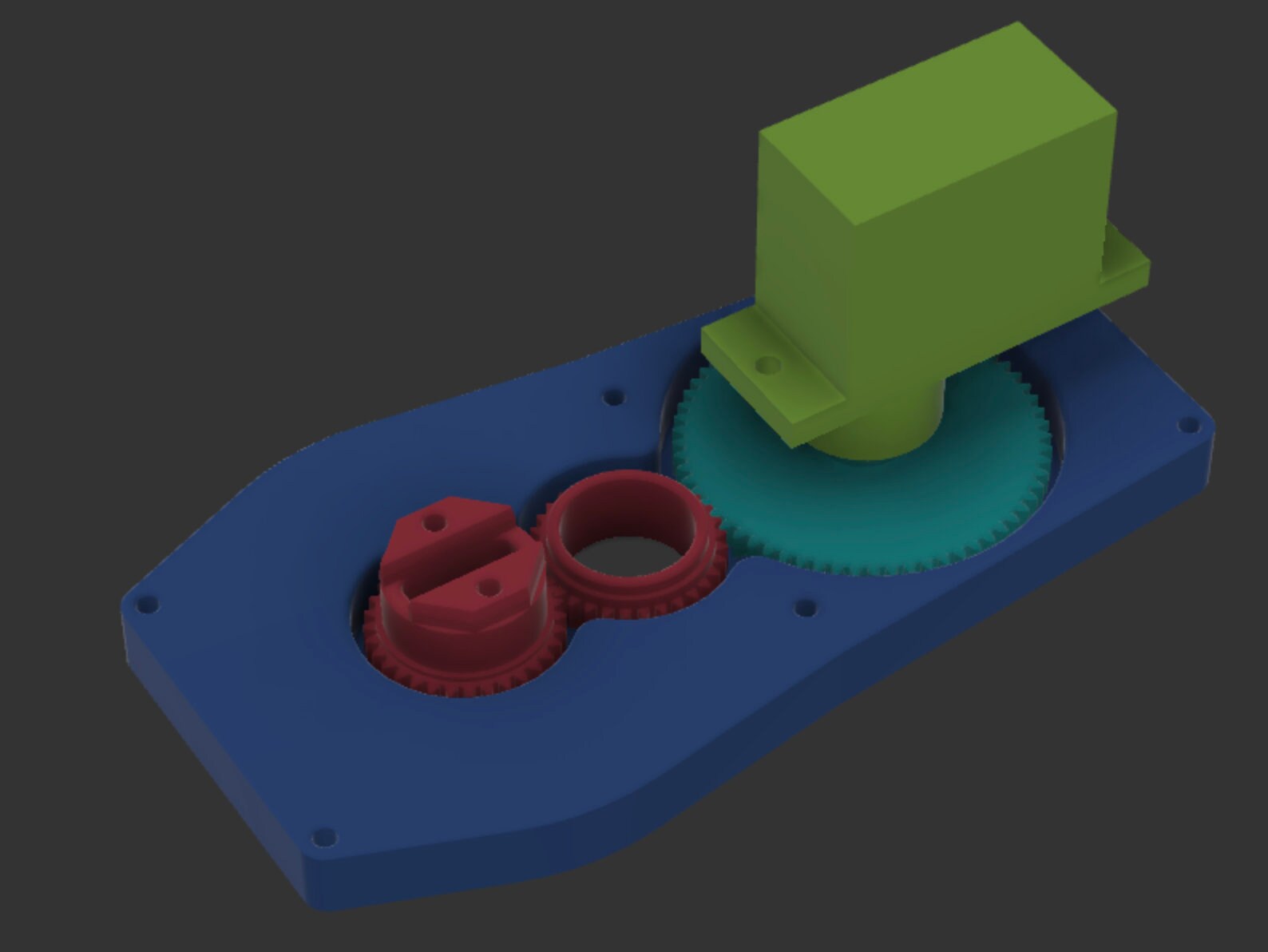

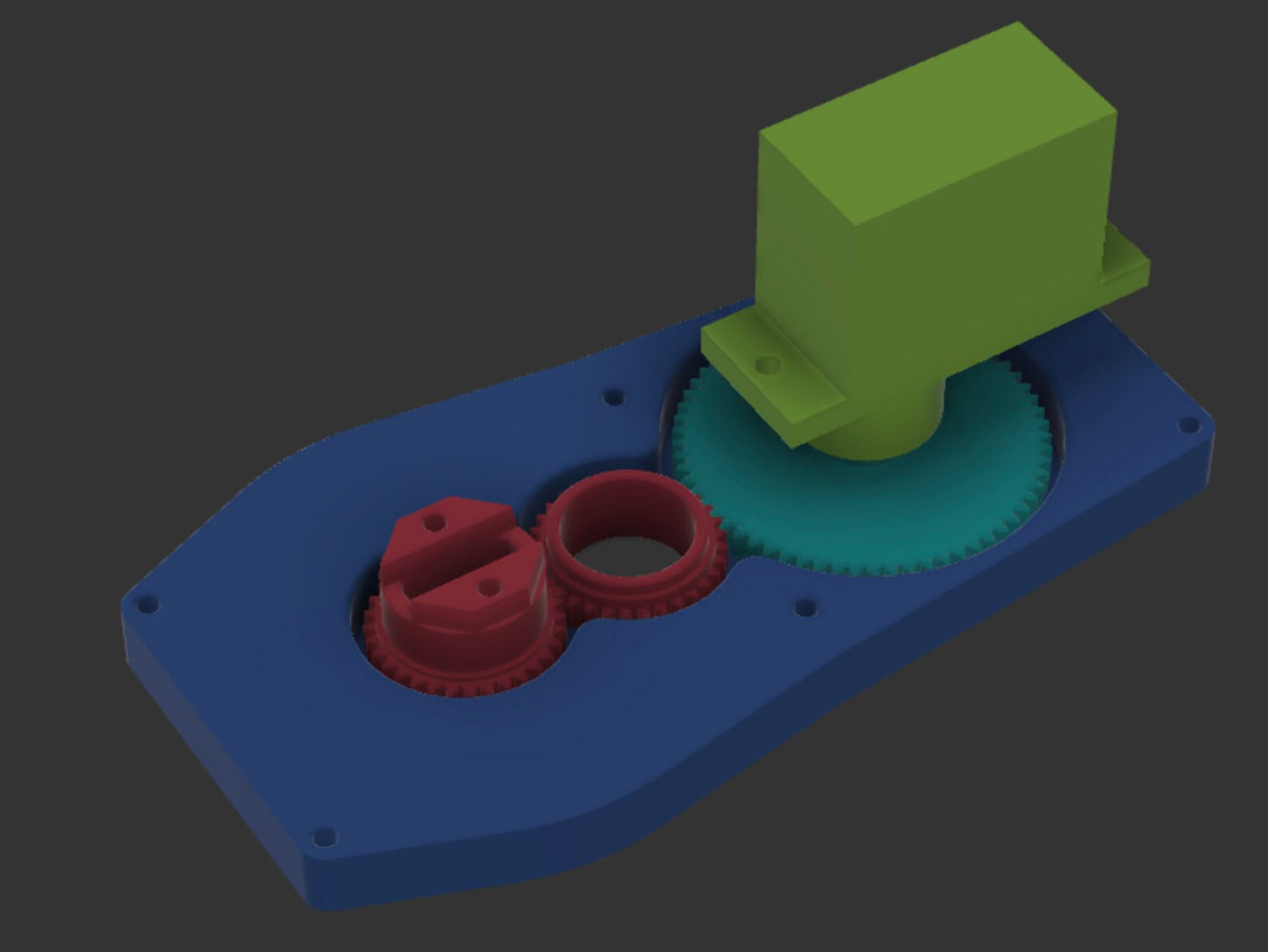

The variant is designed for flying wings where the original gimbal may be hard to mount due to its total height. Here, we trade height of the gimbal for length by placing pan servo upside down and behind the camera.

Note: You still need some space under the gimbal for camera and tilt servo wires, mind this while mounting the gimbal on your model.

Dimensions

• Fully assembled gimbal (LxWxH): 79x44x47.5mm

Assembly

You'll need tilt assembly from original gimbal. Product shipped either fully assembled with one servo or as a kit, with and w/o servo. All gears and screws are always included. If you are ordering this together with fully assembled original FPV Camera Gimbal and want it be assembled with low profile mod, please drop a message about that.

Join our users group for support and news:
https://www.facebook.com/groups/242161055041994/

Have a 3D printer and want print the gimbal yourself?

Download STL files from Cults3D.
